Kenmore 790.95372800

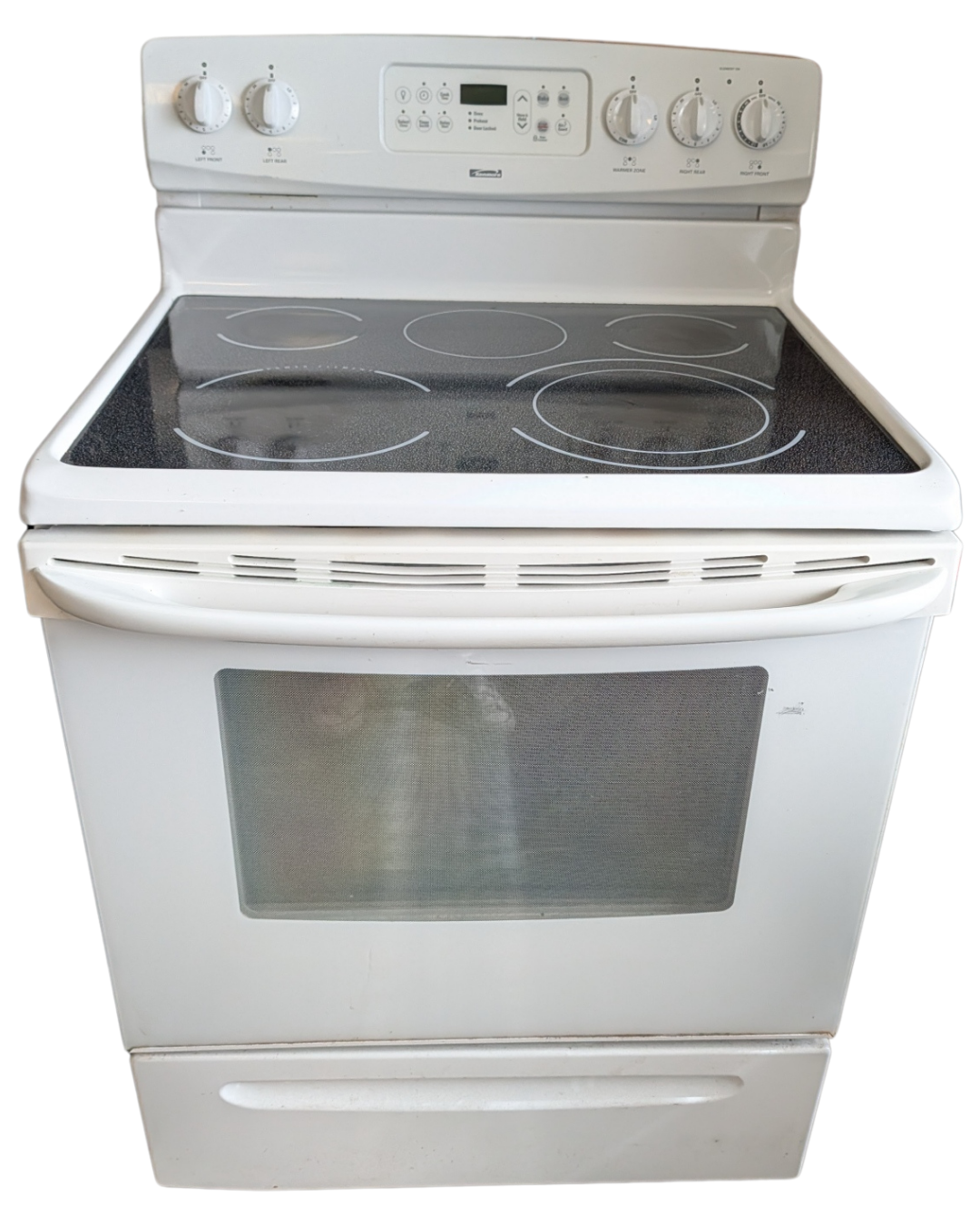

The Kenmore 790.95372800 is a 30-inch freestanding electric range manufactured for Sears by Electrolux/Frigidaire. This classic model is known for its reliable, straightforward design featuring a traditional electric cooktop configuration, an integrated oven control board, and a white finish

• Cooktop Setup: 4-burner setup using traditional radiant surface elements.
• Large Heating Elements: 9-inch/6-inch dual radiant surface elements rated at 3,000 Watts. Alternate 8-inch single elements are rated at 2,600 Watts and 8.8–10.8 Amps.
• Small Heating Elements: 6-inch surface burner elements regulated by standard infinite control switches.
• Bake Unit Performance: 240 Volts, 3,500 Watts bake element utilizing a high-temp silicone sealed construction.
• Electrical Requirements: Requires a standard 240-Volt power supply connection through a heavy-duty terminal block kit.

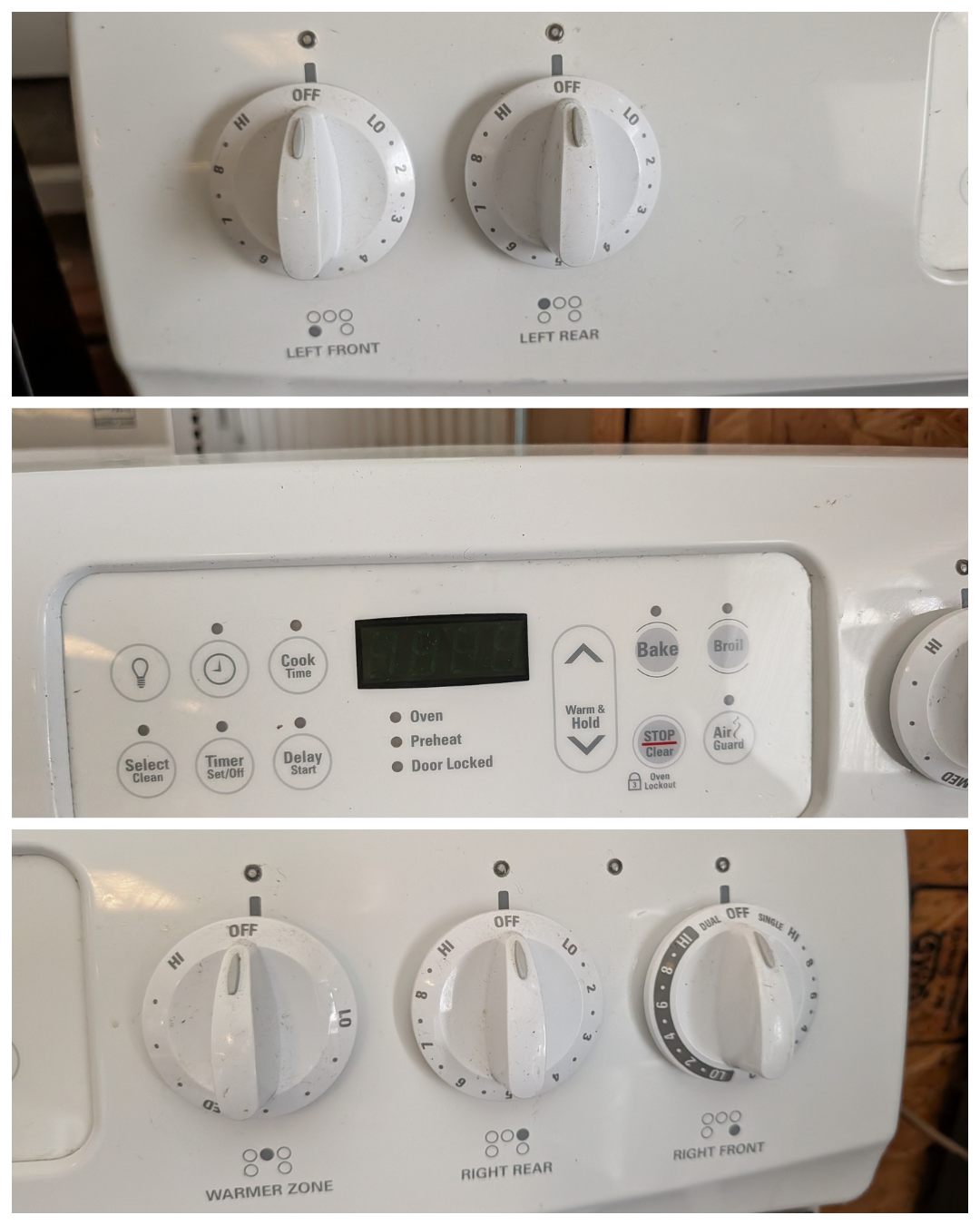

• Control Overlay: White control board assembly managing time, temperature, and standard baking functions.

• Width: 29.88 inches (standard 30" cabinet cutout)
• Height: 47.75 inches (from the base to the top of the rear control panel backguard)
• Cooktop Height: 36 inches (standard counter height alignment)
• Depth: 28.5 inches (total depth including the handle and rear clearances)
• Capacity: 5.4 cubic feet
